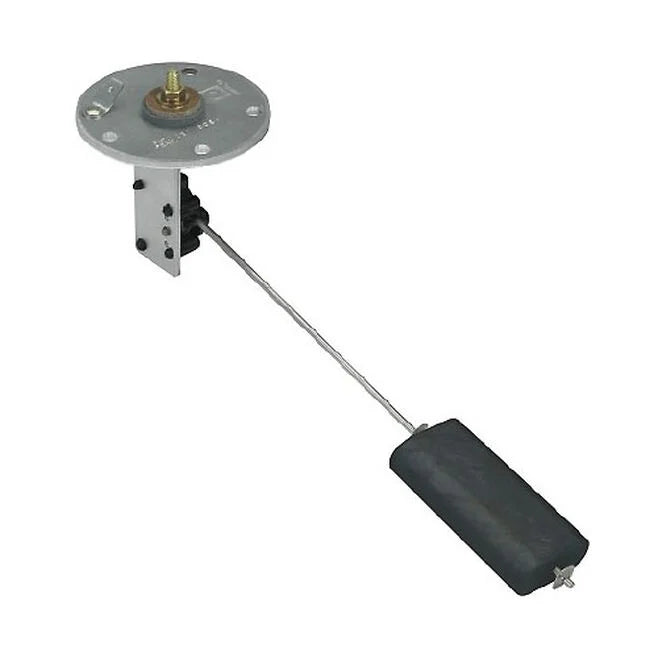

Electric Fuel Gauge Sending Units 12In-24In 114-035792-10

Simply measure your tank depth to get the correct swingarm float length for an accurate fuel level.

These swingarm, Electric Fuel Gauge Sending Units gather fuel level information from a float which is read on a dash-mounted gauge (sold separately). They fit the industry-standard bolt-hole pattern and 240-33 Ohm gauges. Internal measurement components will not rust or corrode.

Key Features

• Measure your tank depth and make the swingarm float the exact length for accurate fuel level
• Float rotates for tank wall and baffle clearance
• Calibrated to the Industry Standard of 33-240 Ohms
• Requires connection to a dash mounted gauge
• Internal components will not rust or corrode
• Complete with 5-hole gasket and screws
• Swingarm readings are subject to fuel-slosh fluctuations
• Senders are suitable for gasoline, ethanol, diesel, bio-diesel and non-potable water
• Meet ISO 10088 & 8846 and ABYC H-24 requirements
