Product details and technical data

Product information

Nylatech® SL Cast Nylon 6 Tube. Solid-lubricant-modified cast PA6 for machined sliding-wear components.

Select your tube size

19" to 24" outside diameter (OD). Select OD, then inside diameter (ID).

Sold each (EA): quantity 1 = one complete tube. Standard length is 26" or 52", fixed by the OD/ID combination; confirm the selected length. Length is not a separate option.

Choosing Nylatech® SL

Consider Nylatech® SL where external lubrication is difficult. Compare Nylatech® Oil-Filled for liquid-oil lubrication or Nylatech® PVM when evaluating bearing pressure and sliding speed together.

Tube is machining stock for bushings, sleeves and rings, not finished bearings or pressure-rated pipe. Nominal wall thickness = (OD − ID) ÷ 2.

Other tube grades: Nylatech® Natural · Nylatech® Natural-Oil · Nylatech® Blue · Nylatech® MD · Nylatech® Oil-Filled · Nylatech® MD-Oil · Nylatech® PVM · Nylatech® Super Black.

Allow for machining: dimensions are nominal stock sizes, not finished-part tolerances. Nylon absorbs moisture; consider dimensional change, temperature, chemicals and operating loads when specifying close-fitting parts.

Technical properties and data sheet
Nylatech® SL — typical selection data
Density 1.13 g/cm³
Tensile strength 10,000–12,000 psi
Compressive strength at 10% deflection 14,000–15,000 psi
Flexural strength 15,500 psi
Elongation 20–45 %
Hardness 80–84 Shore D
Water absorption, 24 hours 0.3 %
Coefficient of friction, dynamic 0.115
Coefficient of friction, static 0.151

Typical values, not finished-part performance guarantees. Compressive strength is at 10% deflection; dry-friction values refer to steel where stated. Nylatech® SL technical data.

Nylatech® SL in other shapes: Sheet · Rod.

Custom sizes and CNC-machined parts

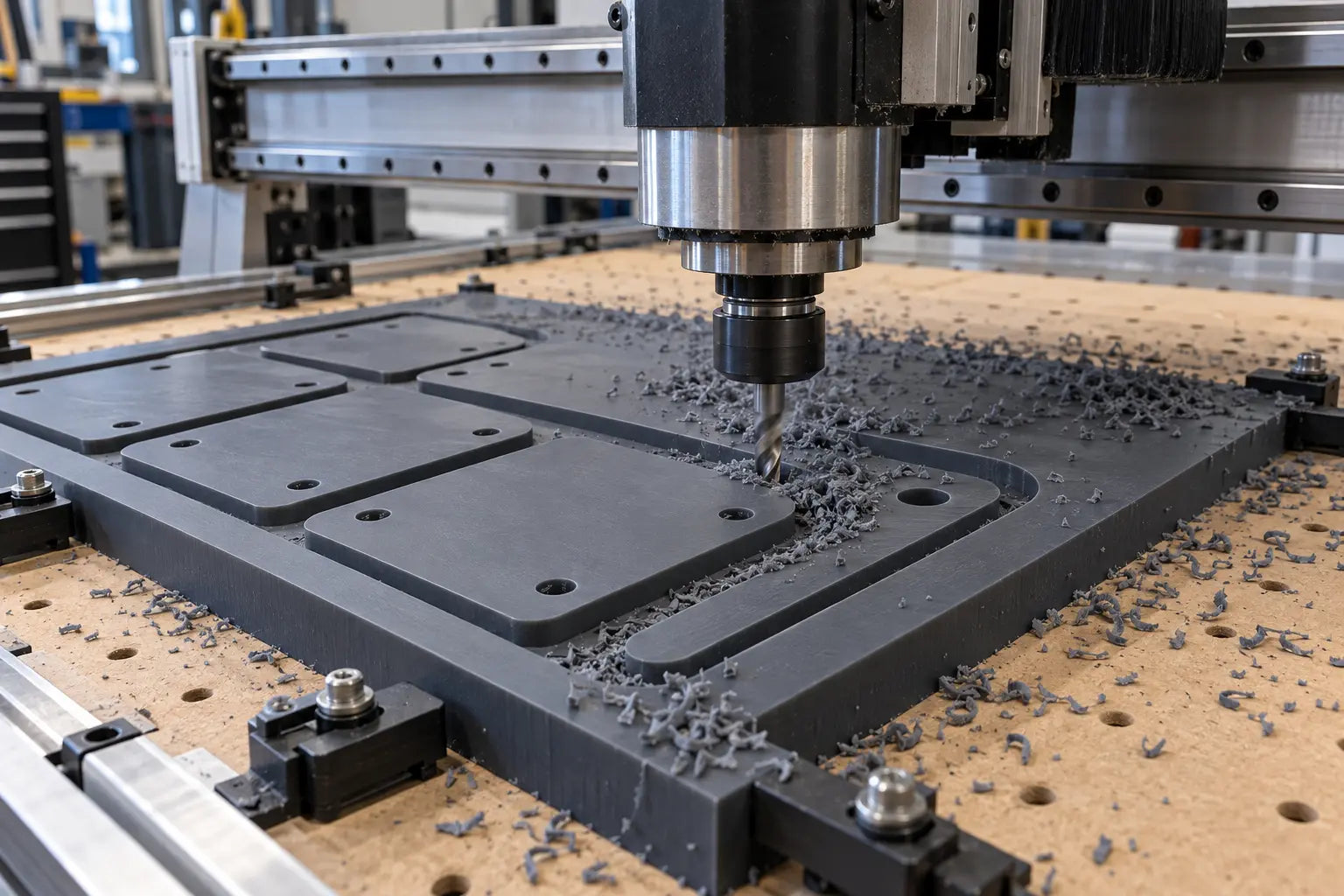

For custom tube sizes or lengths, or CNC-machined parts, send grade, OD, ID, length and piece count. Include a drawing and required tolerances for machined parts. Request custom work.
