Tech Specs

Product information

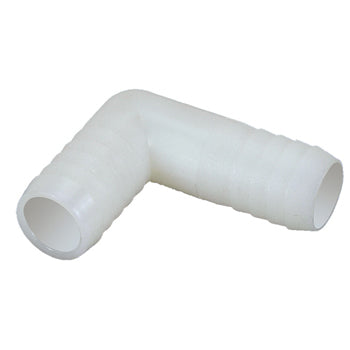

Hose Joiner 90 Degree G20N90-025 1/4in

We offer hose menders in a variety of materials and sizes to suit the products being conveyed. Our nylon fittings are made with FDA approved high-quality first-generation resin and are NSF 61 certified. They are generally acceptable for use at working pressures up to 150 psi and will withstand temperatures as high as 75°C (167°F) and as low as -40°C (-40°F) although they should not be used below 0°C (32°F) where fluid expansion from freezing can occur. Nylon is a strong, abrasion-resistant material with excellent impact resistance. Nylon has good chemical resistance to organic solvents, oils, and fuels but is not recommended for use with strong acids and bases such as ammonium, boric acid, calcium, or sulfuric acid.

UPC: 882974037790

Part Number: G20N90-025

FITTING CATEGORY Hose Menders
FITTING TYPE 90° Hose Mender
HOSE SIZE 1/4"
MATERIAL Nylon
SHAPE 90° Elbow
WEIGHT 0.01 lb
