Acrylic sheet drills cleanly when the bit cuts instead of grabs, the panel is fully supported and heat is carried away in chips. Cracks usually begin when a standard aggressive drill bit pulls into the sheet, the work flexes, or feed pressure is not reduced as the bit exits.
Use a purpose-made plastics drill or a correctly modified high-speed-steel bit. Test the setup on scrap of the same acrylic type and thickness before drilling the finished part.
Quick answer
Leave the masking on, mark the hole, clamp the acrylic over a clean MDF or plastic backing board, use a plastic-cutting drill geometry, run steadily and feed gently. Peck deeper holes to clear chips and slow the feed as the bit breaks through.
Choose the bit
ACRYLITE recommends drills ground for plastics. Its fabrication guidance lists a 60° to 90° point angle—generally 90°—with a 0° to 4° rake, 12° to 15° clearance and a 15° to 30° helix. This less aggressive geometry reduces grabbing compared with a typical bit intended for metal.
A purpose-made plastic drill is the simplest choice. A conventional high-speed-steel bit can be modified by a competent fabricator, but inconsistent hand grinding can make the bit cut unevenly. Inspect it for chips and confirm both cutting lips are equal.
Tools and materials
- Purpose-made acrylic/plastics drill bit or correctly modified HSS bit
- Drill press preferred for accuracy; controlled hand drill for suitable work
- Clean MDF, acrylic or thermoplastic backing board
- Clamps that secure the work without point loading
- Non-permanent marking method and protective masking
- Zero-flute countersink for deburring or countersinking
- Eye protection and chip-control equipment
Step-by-step method
-
Confirm the material
Identify cast or extruded acrylic, thickness and any coating. Check the sheet supplier’s fabrication guidance because heat response and stress sensitivity can vary.
-
Lay out the hole
Keep the factory masking in place and mark on the masking. Locate holes far enough from edges for the fastener and service conditions. Avoid centre punching acrylic with a metal punch.
-
Support the sheet

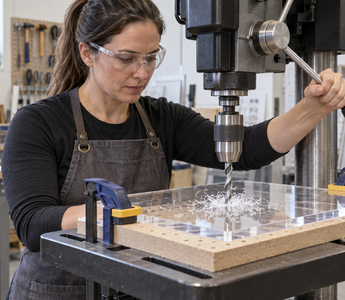

Place the acrylic flat on a clean, continuous MDF, acrylic or thermoplastic backing board. Clamp both the panel and backing so neither can lift or vibrate. Keep clamps away from the drill path.
-
Set the bit and speed
Install a sharp plastics bit square to the work. Select a moderate speed appropriate to diameter and thickness. The correct combination produces clean continuous chips without whitening, melting or violent grabbing.
-
Start with light feed
Bring the bit into contact gently and establish the hole without forcing. Maintain a steady feed that lets the cutting edges remove material instead of rubbing.
-
Clear chips in deeper holes
Use a peck-drilling action where needed: withdraw periodically so chips escape and heat does not build in the flute. Do not allow a wad of hot chips to polish or melt the hole wall.
-
Slow down at breakthrough
Reduce feed pressure before the tip exits the underside. Let the backing support the acrylic while the full diameter passes through; this is where an aggressive bit most often grabs and chips the sheet.
-
Deburr carefully
Use a zero-flute countersink or approved deburring method with very light pressure. Remove only the sharp edge unless the fastener design specifically requires a countersunk seat.
Large holes and fastening
For large diameters, use a tool and method approved for acrylic. A circle cutter should be used only in a drill press with the sheet and backing securely clamped—never freehand. Suitable hole saws need careful speed, chip clearing and backing.
Acrylic expands and contracts more than metal or glass. For point fastening, ACRYLITE’s guide recommends a drilled hole at least twice the bolt diameter and a hole centre at least 1.5 times the drilled-hole diameter from the sheet edge. Use appropriate washers and do not clamp the sheet rigidly; structural designs need project-specific engineering.
Common mistakes
- Using a sharp, aggressive general-purpose metal bit without modification
- Drilling an unsupported or flexing panel
- Holding the sheet by hand
- Forcing the bit or letting it rub until acrylic melts
- Failing to clear chips from a deep hole
- Maintaining full feed pressure at breakthrough
- Putting holes too close to an edge
- Tightening fasteners until the acrylic is rigidly clamped
Safety and limits
Clamp the work; never hold acrylic near a rotating cutter. Do not wear gloves near drill bits, chucks or rotating tools. Wear eye protection, secure long hair and loose clothing, and remove sharp chips safely. Circle cutters require a drill press, guarding and a secure setup.
Frequently asked questions
Can I use a normal drill bit?
A purpose-made plastics bit is safer and more predictable. A standard HSS bit can be reground to suitable geometry by someone who can keep both cutting lips equal. Test on matching scrap.
Why is the acrylic melting?
The bit may be rubbing, the speed may be too high for the setup, feed may be too light, or chips may be trapped. Stop, let the material cool and correct the cutting conditions.
Why did the underside chip?
The sheet may have lacked backing, the bit may have grabbed, or feed pressure stayed too high as it broke through. Support the underside and slow the feed before exit.
Should I countersink screw holes?
Only when the fastening design calls for it. Use a zero-flute countersink and remove material gently; over-countersinking can create stress concentrations.
