Tech Specs
Product information

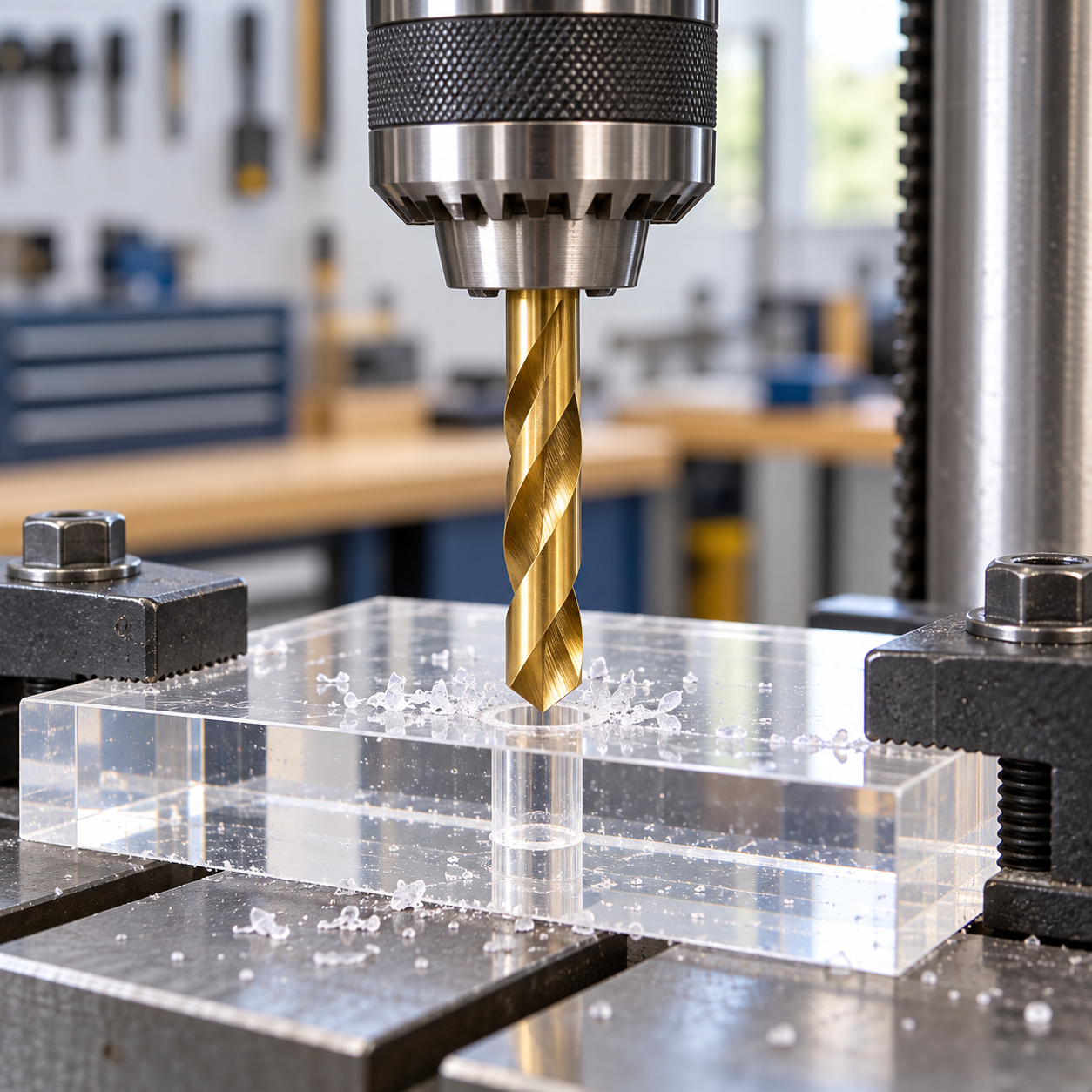

Norseman Drill & Tool Type 183-AG Chipfree™ drill bits are designed for drilling acrylic, plastic and laminate. Their Super Chipfree™ point is ground at 60° for gradual penetration to help reduce cracking and chipping. The special 0° rake angle helps prevent the bit from grabbing as it breaks through the material.
The Norseman Type 183-AG's 60° point and 0° rake fall within ACRYLITE's 60°–90° point and 0°–4° rake ranges. ACRYLITE generally recommends 90° and notes 60° especially for holes 1/2 in and larger. For manufacturer guidance and Go Industrial's shop preference, see our guide to drilling acrylic sheet.
Choose a diameter and package
Select a diameter and package quantity from the options above. Single bits are available in seven fractional diameters. Multi-packs are offered in selected sizes. The 7-piece set contains one bit in each listed diameter and includes a storage case. Compare all Norseman acrylic drill bit sizes and pack options.
Technical specifications
| Point | Super Chipfree™, 60° |
|---|---|
| Rake angle | 0° |
| Shank | Norseman specifies a 1/4 in shank for drill diameters over 1/4 in |
| Intended materials | Acrylic, plastic and laminate |
| Packages sold here | Single bits; selected 10-packs and 4-packs; 7-piece set with storage case |
Dimensions by drill diameter
| Diameter (in) | Diameter (mm, rounded) | Norseman part number | Overall length (in) | Flute length (in) |
|---|---|---|---|---|
| 1/8 | 3.18 | 31500 | 2-5/8 | 1-5/8 |
| 3/16 | 4.76 | 31520 | 3-3/8 | 2-5/16 |
| 1/4 | 6.35 | 31530 | 3-15/16 | 2-3/4 |
| 5/16 | 7.94 | 31540 | 3-13/16 | 2-3/16 |
| 3/8 | 9.53 | 31550 | 4-1/4 | 2-9/16 |
| 7/16 | 11.11 | 31560 | 4-11/16 | 2-15/16 |
| 1/2 | 12.70 | 31570 | 5 | 3-7/32 |
Dimensions and part numbers are from Norseman’s Type 183-AG specification sheet. Package quantities above describe the options sold here.
For the manufacturer's product details, see Norseman Drill & Tool Type 183-AG Chipfree™ Acrylic Drills. For drilling setup and technique, read our guide to drilling acrylic sheet. Browse acrylic sheets.
