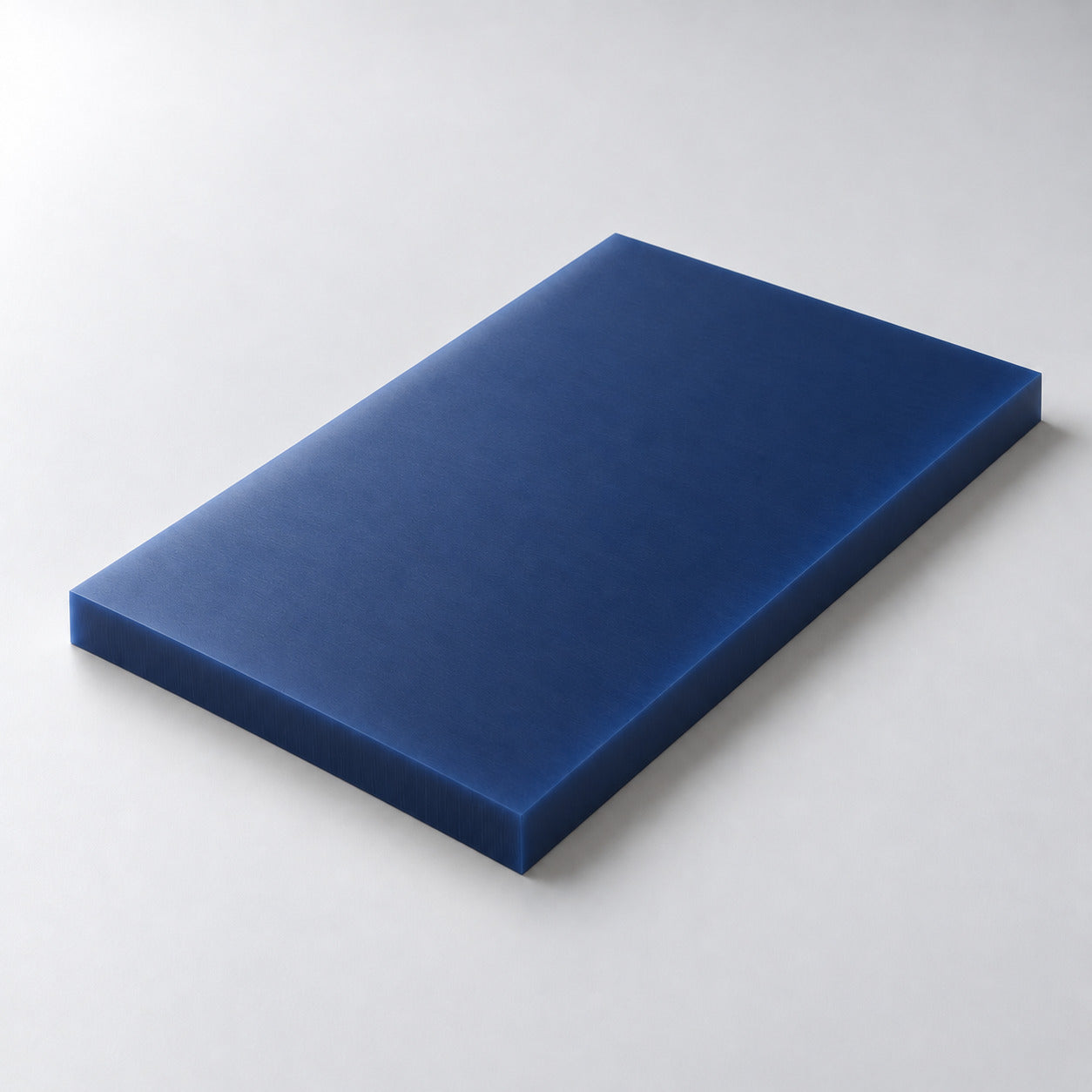

Nylatech MD-Oil Cast Nylon 6 Sheet. Cast PA6 combining moly modification and internal oil lubrication.
Select thickness and area

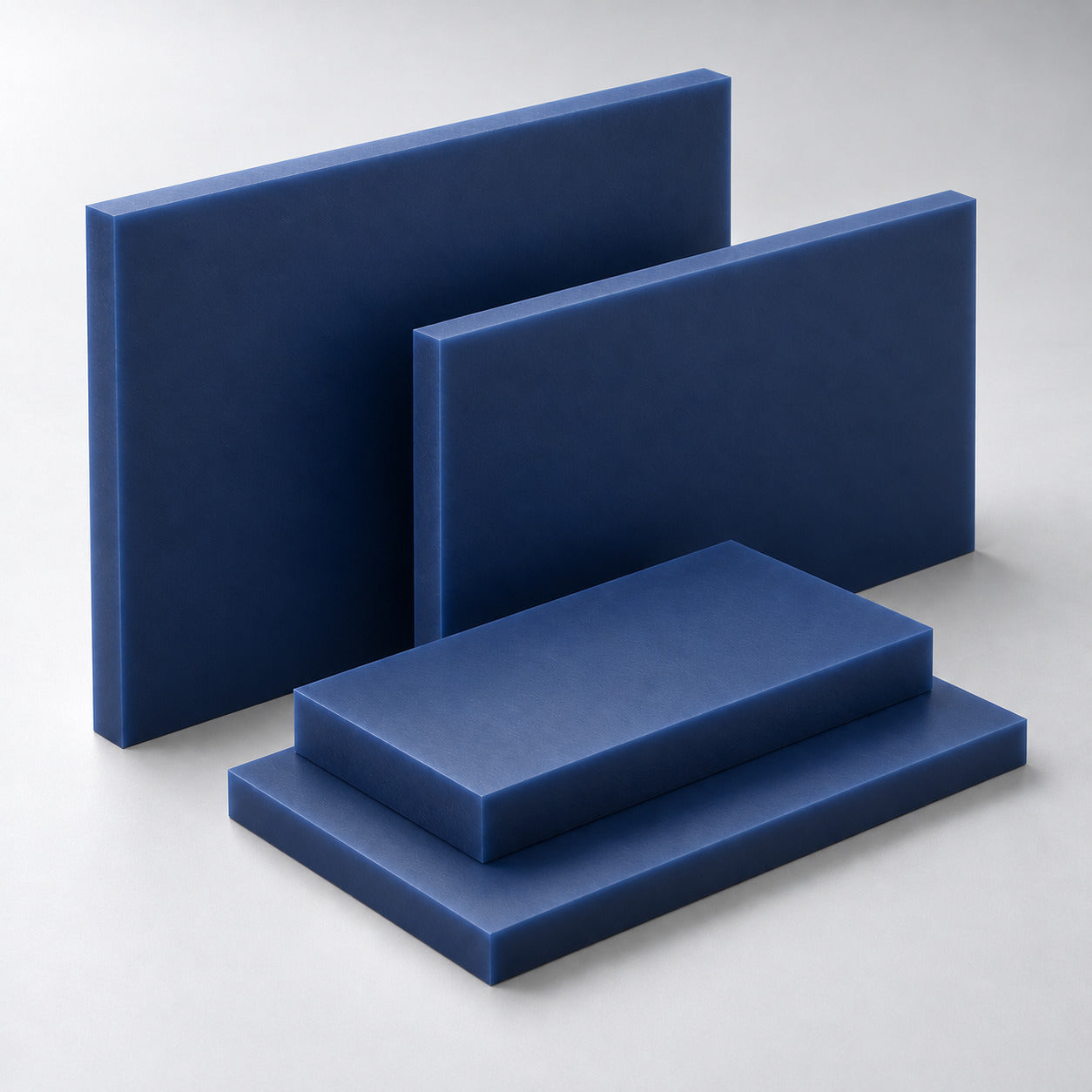

Sold per square foot (SFT): quantity 1 = 1 sq ft. Select a 0.25–4 in thickness. Standard stock is 2 × 4 ft; one full sheet contains 8 SFT.
For cut pieces, specify length × width and piece count. The SFT quantity alone does not define a cutting layout.
Choosing MD-Oil
Consider MD-Oil for loaded parts with slow movement and difficult lubrication access. Compare MD without oil lubrication or Oil-Filled without moly modification.

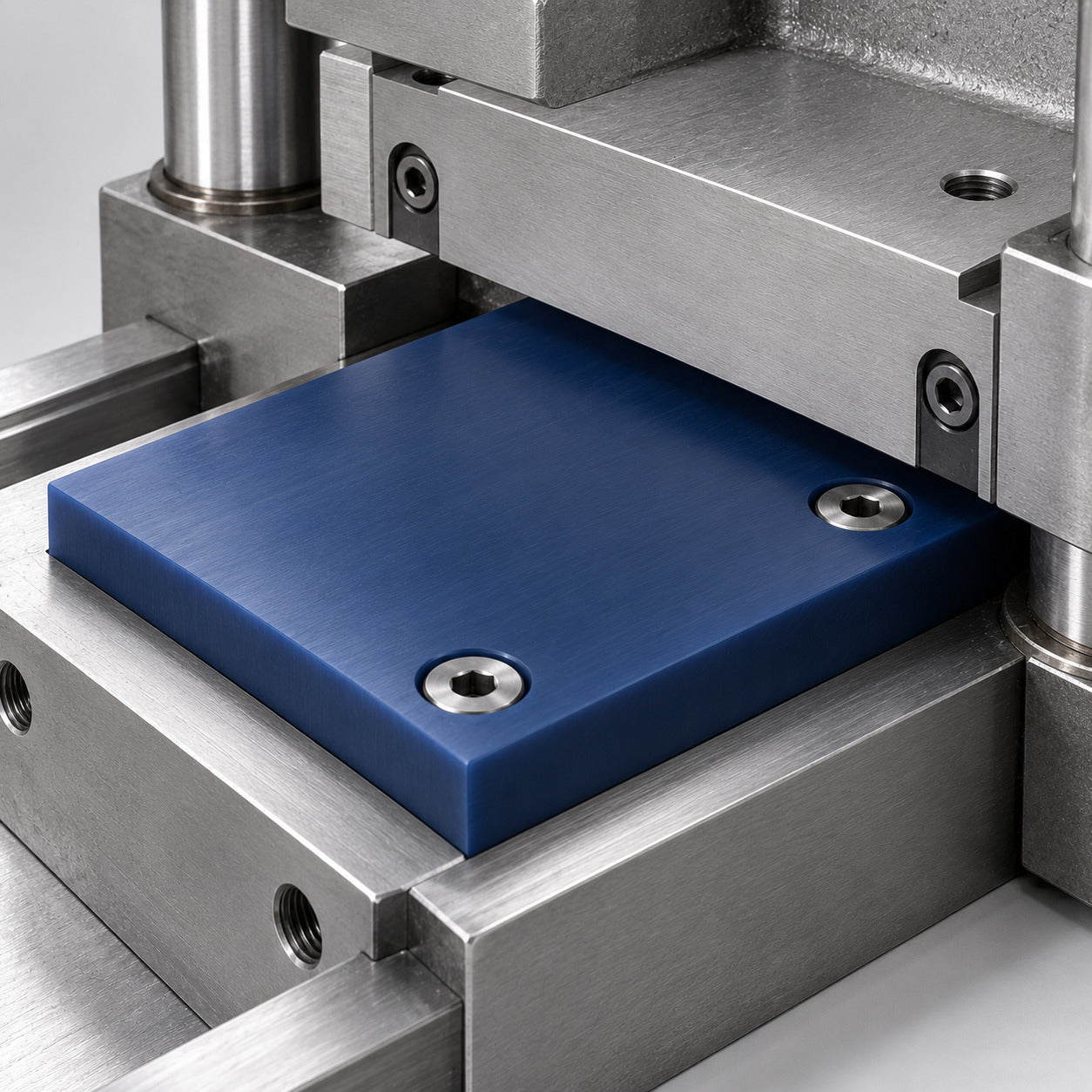

Sheet or plate is a starting form for flat wear pads, strips and machined profiles. Plan the part layout and finished thickness before selecting stock.
Other sheet grades: Natural · Natural-Oil · Blue · MD · Oil-Filled · SL · PVM · Super Black · Food Grade Blue.
Allow for machining: dimensions are nominal stock sizes, not finished-part tolerances. Nylon absorbs moisture; consider dimensional change, temperature, chemicals and operating loads when specifying close-fitting parts.
Technical properties and data sheet
| Density | 1.15 g/cm³ |
|---|---|
| Tensile strength | 10,000–12,000 psi |
| Compressive strength at 10% deflection | 14,500 psi |
| Flexural strength | 15,000 psi |
| Elongation | 30–45 % |
| Hardness | 80–84 Shore D |
| Coefficient of friction (dry against steel) | 0.13–0.20 dimensionless |
| Water absorption, 24 hours | 0.2–0.5 % |
Typical values, not finished-part performance guarantees. Compressive strength is at 10% deflection; dry-friction values refer to steel where stated. Nylatech MD-Oil technical data.
MD-Oil in other shapes: Rod · Tube (browse OD ranges).
Custom sizes and CNC-machined parts
For 4 × 4 ft, 4 × 8 ft or 4 × 10 ft sheets, other nonstandard sizes, or CNC-machined parts, send grade, thickness, dimensions and piece count. Include a drawing and required tolerances for machined parts. Request custom work.
