Fixed length: 52.0 in. Sold per piece (EA). Quantity 1 = one tube at this fixed length.
Full Product Details

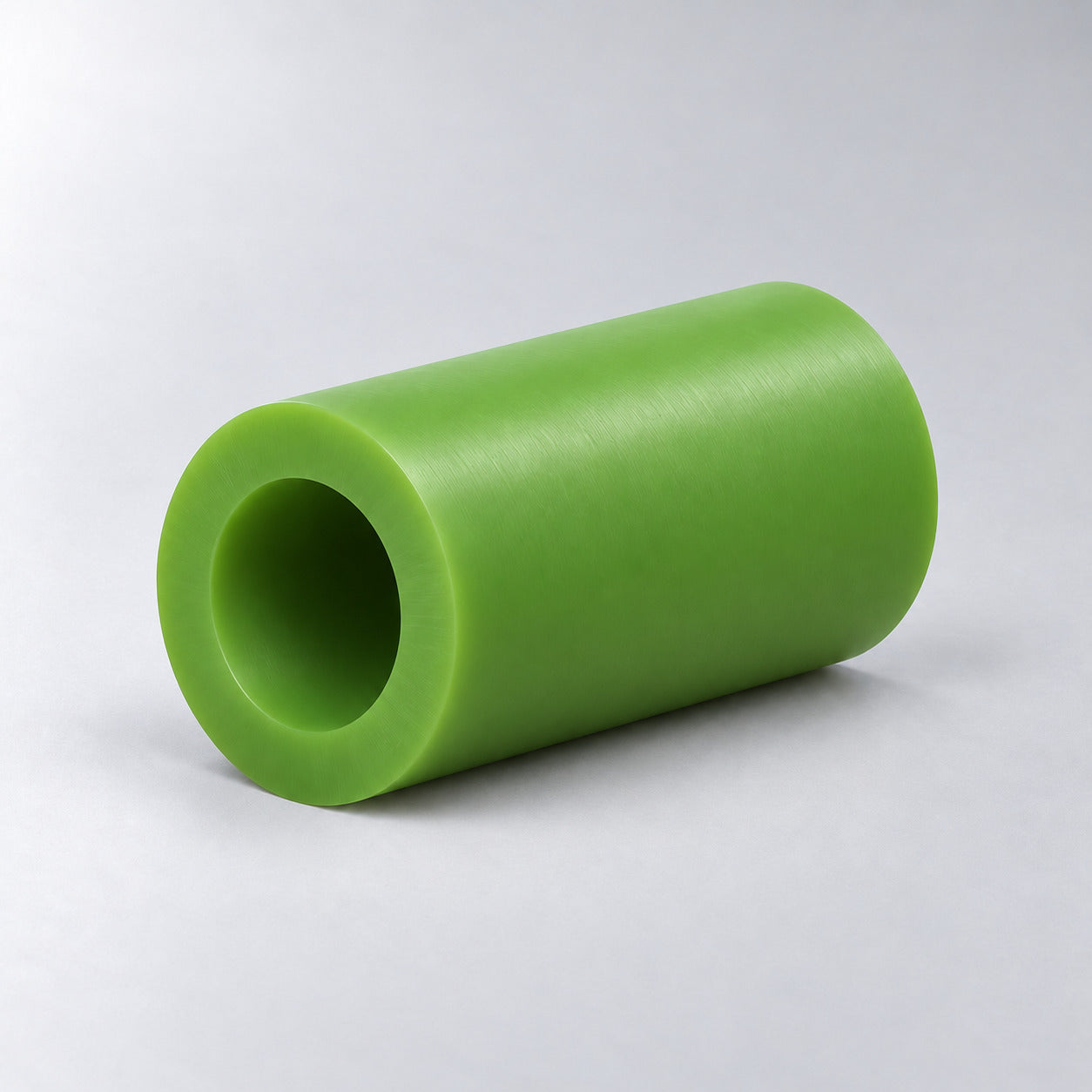

Nylatech Oil-Filled Cast Nylon 6 Tube. Oil-lubricated cast PA6 for machined sliding and rotating wear components.
Select your tube size

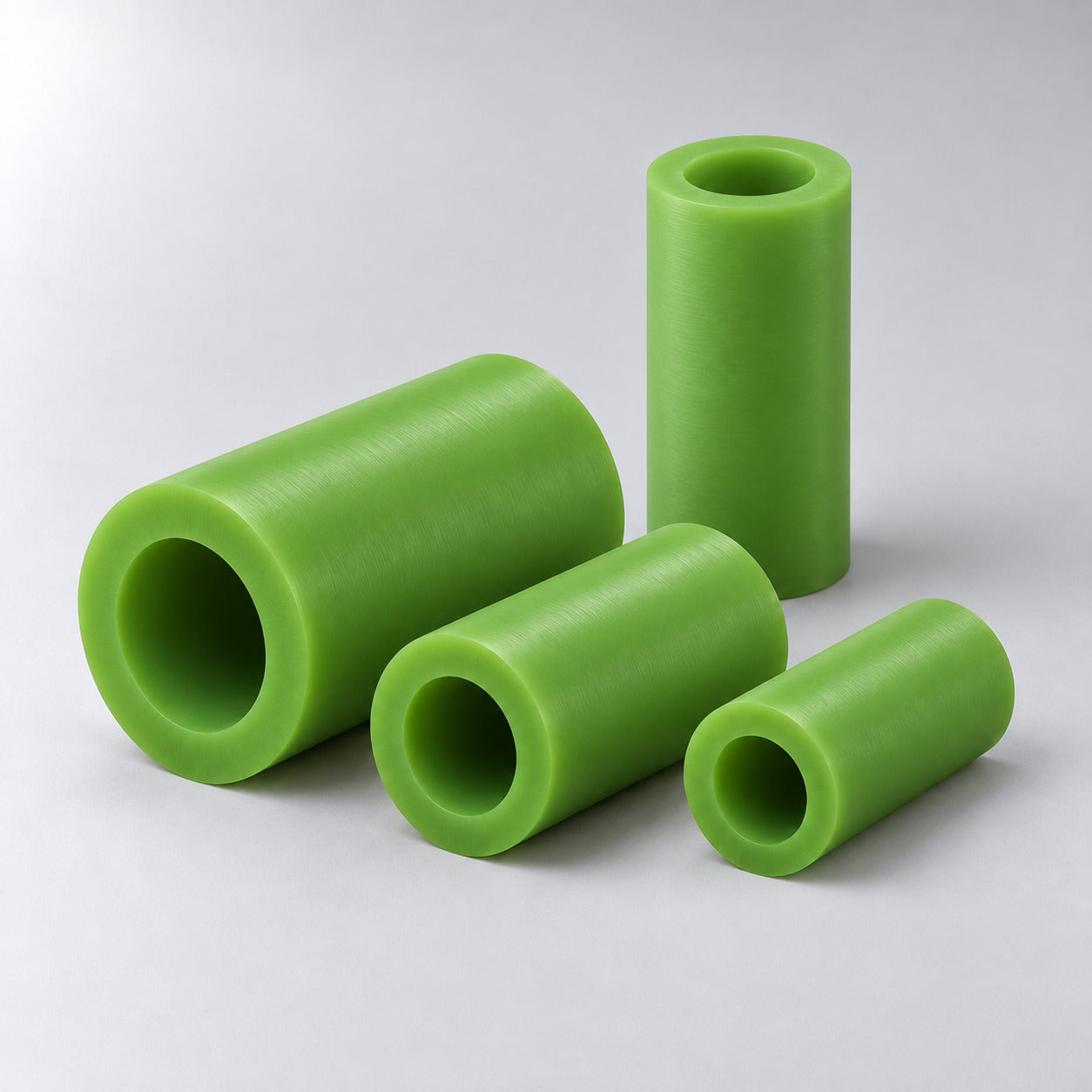

11–14 in outside diameter (OD). Select OD, then inside diameter (ID).
Sold each (EA): quantity 1 = one complete tube. Standard length: 52 in. Length is not a separate option.
Choosing Oil-Filled
Consider Oil-Filled where regular external lubrication is difficult. Compare MD-Oil for a moly-and-oil formulation, or Natural-Oil when food-contact documentation is required.

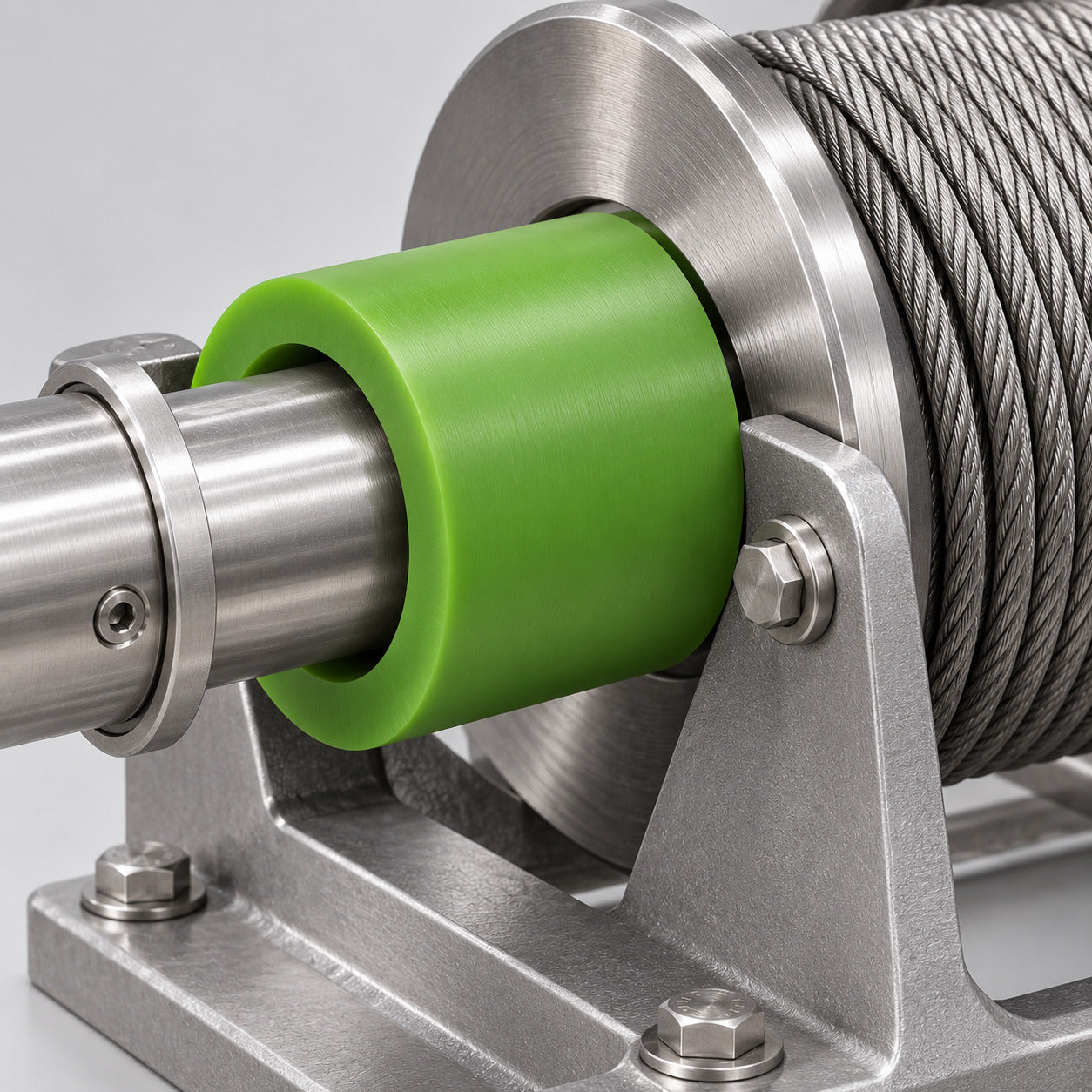

Tube is machining stock for bushings, sleeves and rings, not finished bearings or pressure-rated pipe. Nominal wall thickness = (OD − ID) ÷ 2.
Allow for machining: dimensions are nominal stock sizes, not finished-part tolerances. Nylon absorbs moisture; consider dimensional change, temperature, chemicals and operating loads when specifying close-fitting parts.
Technical properties and data sheet
Nylatech Oil-Filled — typical selection data
Density
1.14 g/cm³
Tensile strength
10,000 psi
Compressive strength at 10% deflection
14,000–15,000 psi
Flexural strength
13,000 psi
Elongation
35–40 %
Hardness
80 Shore D
Coefficient of friction (dry against steel)
0.17–0.19 dimensionless
Water absorption, 24 hours
0.3 %
Typical values, not finished-part performance guarantees. Compressive strength is at 10% deflection; dry-friction values refer to steel where stated. Nylatech Oil-Filled technical data.
For custom tube sizes or lengths, or CNC-machined parts, send grade, OD, ID, length and piece count. Include a drawing and required tolerances for machined parts. Request custom work.
