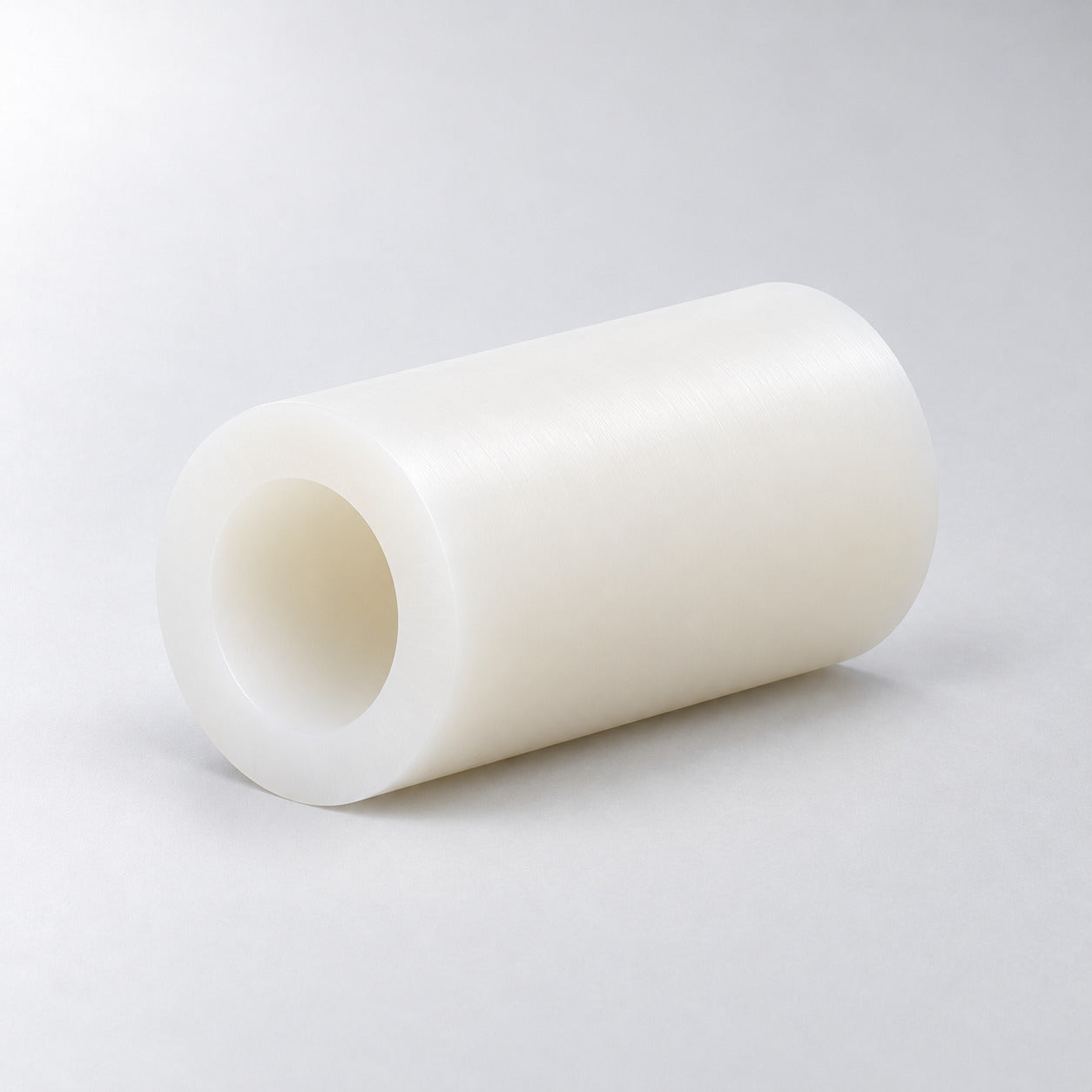

Nylatech Natural Cast Nylon 6 Tube. Unfilled cast PA6 for general-purpose machined wear parts.
Select your tube size

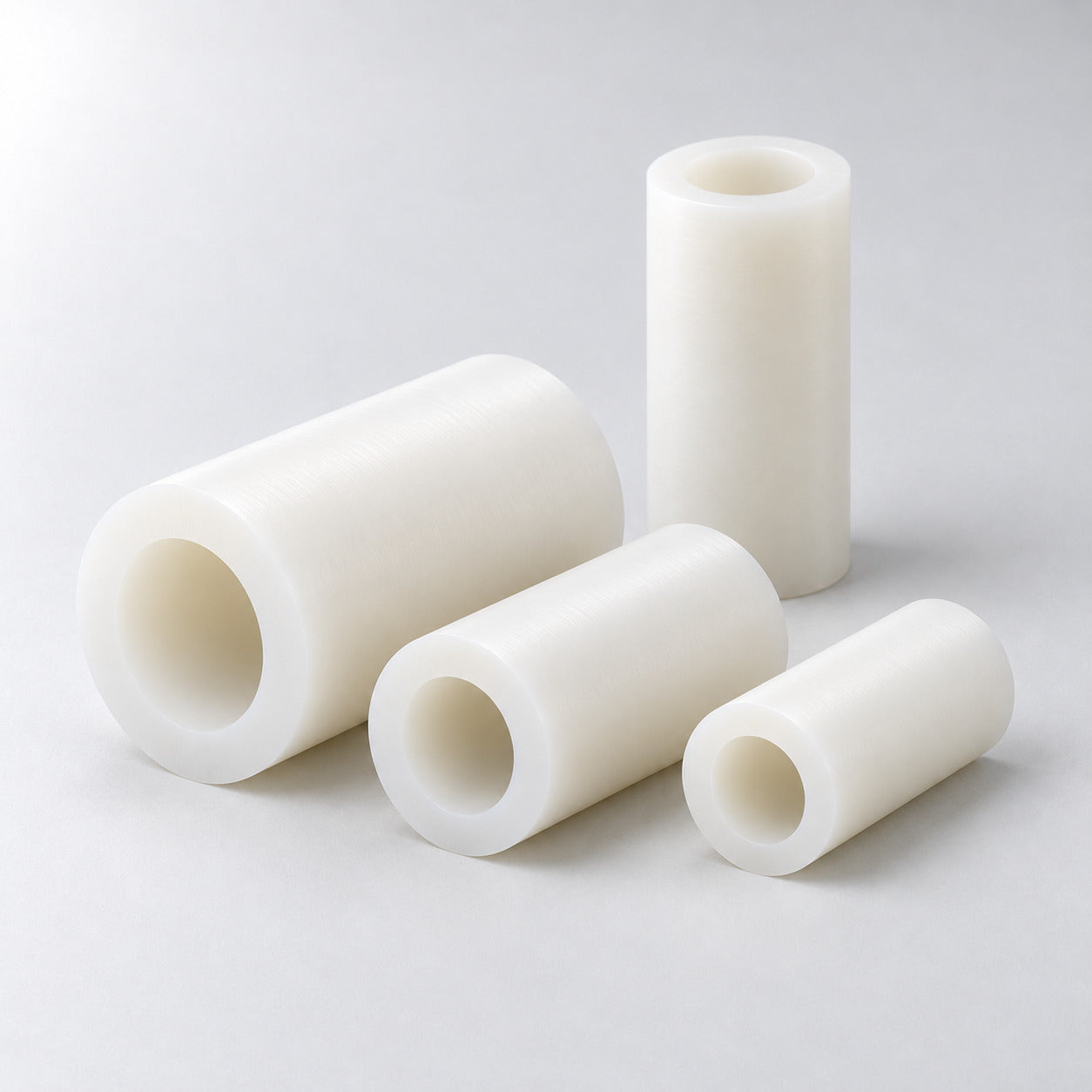

11–14 in outside diameter (OD). Select OD, then inside diameter (ID).
Sold each (EA): quantity 1 = one complete tube. Standard length: 52 in. Length is not a separate option.
Choosing Natural
A starting point for general wear components. Compare Oil-Filled when internal lubrication is needed, or Blue for heat-stabilized material.

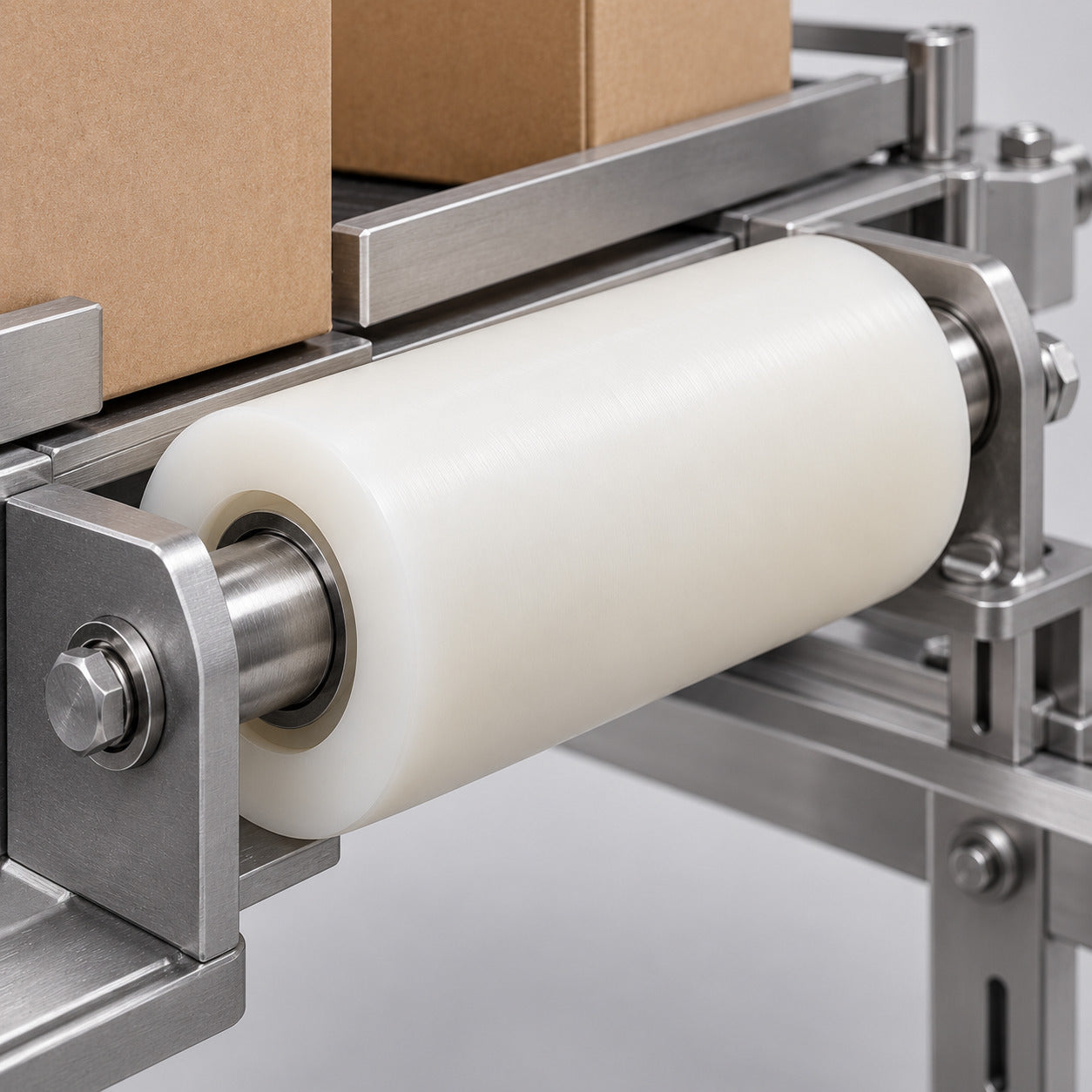

Tube is machining stock for bushings, sleeves and rings, not finished bearings or pressure-rated pipe. Nominal wall thickness = (OD − ID) ÷ 2.
Other tube grades: Natural-Oil · Blue · MD · Oil-Filled · SL · MD-Oil · PVM · Super Black.
Allow for machining: dimensions are nominal stock sizes, not finished-part tolerances. Nylon absorbs moisture; consider dimensional change, temperature, chemicals and operating loads when specifying close-fitting parts.
Food contact: The manufacturer reports Natural and Natural-Oil meet 21 CFR 177.1500. Confirm the supplied grade’s declaration for your food-contact conditions; this does not certify the finished part.
Technical properties and data sheet
| Density | 1.15 g/cm³ |
|---|---|
| Tensile strength | 10,500–12,000 psi |
| Compressive strength at 10% deflection | 15,000 psi |
| Flexural strength | 17,000 psi |
| Elongation | 30–40 % |
| Hardness | 80 Shore D |
| Coefficient of friction (dry against steel) | 0.36–0.42 dimensionless |
| Water absorption, 24 hours | 0.5 % |
Typical values, not finished-part performance guarantees. Compressive strength is at 10% deflection; dry-friction values refer to steel where stated. Nylatech Natural technical data.
Natural in other shapes: Sheet · Rod.
Custom sizes and CNC-machined parts
For custom tube sizes or lengths, or CNC-machined parts, send grade, OD, ID, length and piece count. Include a drawing and required tolerances for machined parts. Request custom work.
