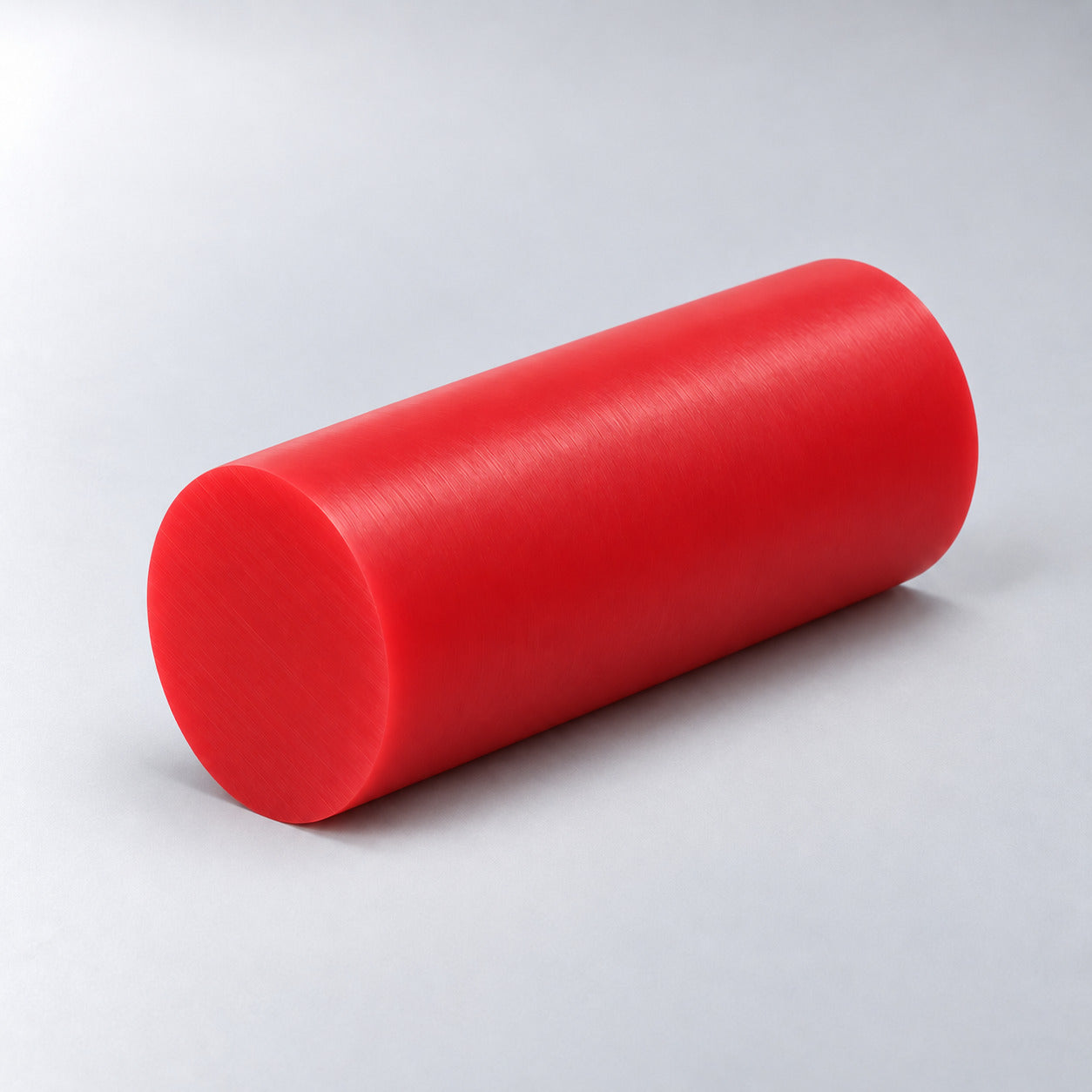

Nylatech PVM Cast Nylon 6 Rod. Modified cast PA6 for components where bearing pressure and sliding speed drive material selection.
Select diameter and footage

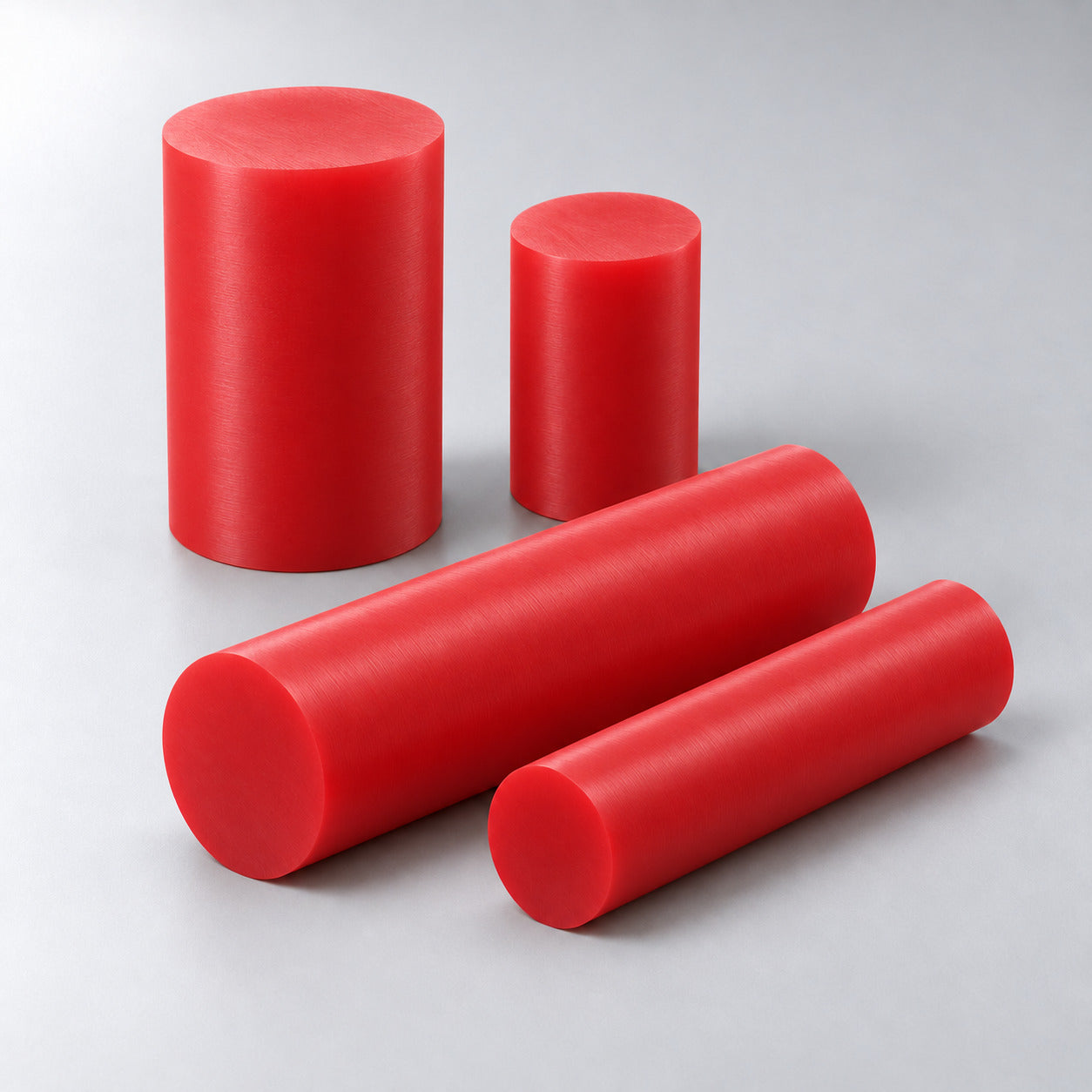

Sold per linear foot (LFT): quantity 1 = 1 ft of material. Choose a 3–14 in diameter. The price is per foot, not per four-foot bar.
For cut lengths, specify each piece’s length and the number of pieces; total footage alone does not define the cuts.
Choosing PVM
Compare PVM with Oil-Filled, MD-Oil or SL for your operating conditions. Selection depends on pressure, speed, temperature and lubrication; a PV figure is not a universal design limit.

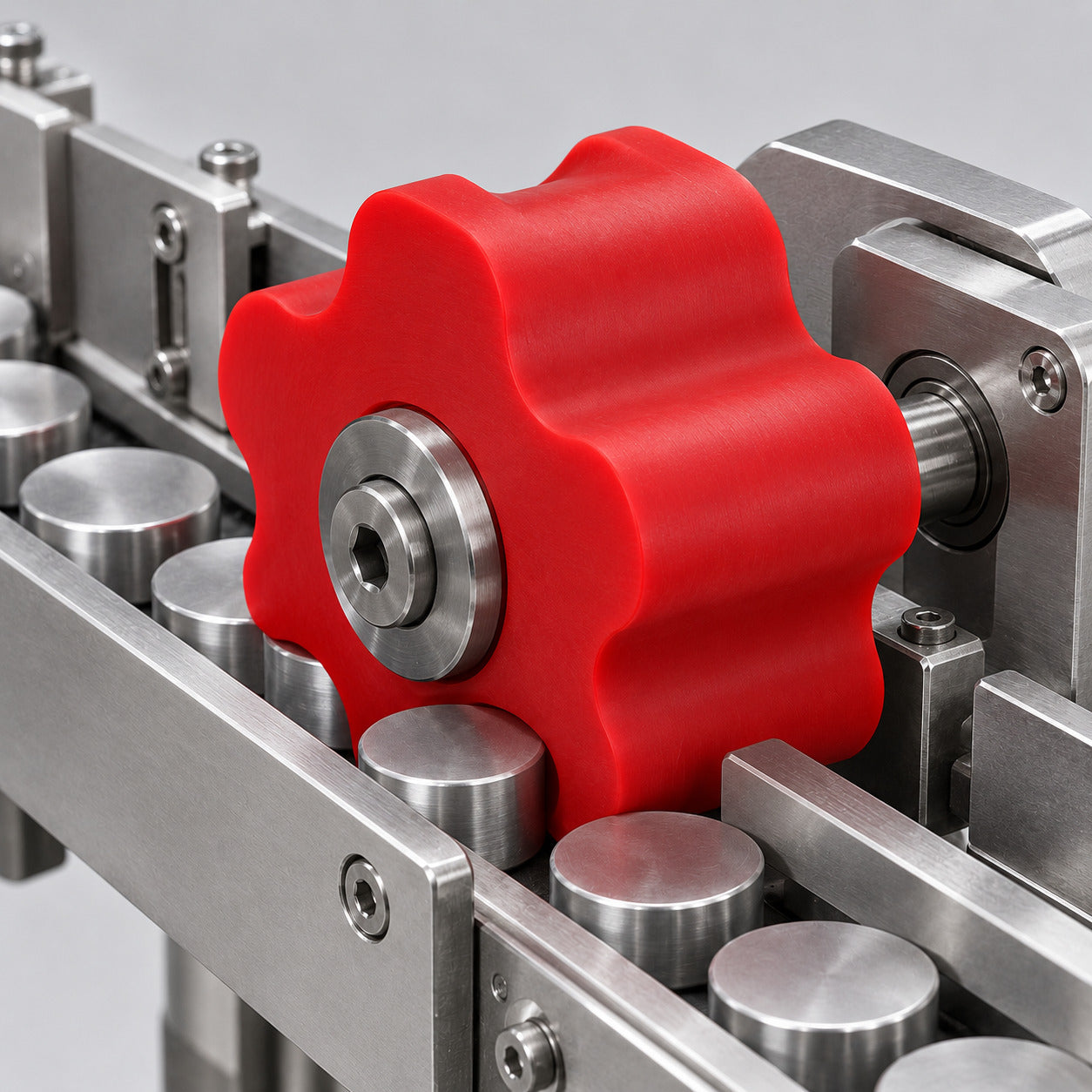

Rod provides a solid starting shape for turned rollers, pins and similar parts. For a large through-bore, compare tube stock to reduce centre material removal.
Other rod grades: Natural · Natural-Oil · Blue · MD · Oil-Filled · SL · MD-Oil · Super Black · Food Grade Blue.
Allow for machining: dimensions are nominal stock sizes, not finished-part tolerances. Nylon absorbs moisture; consider dimensional change, temperature, chemicals and operating loads when specifying close-fitting parts.
Technical properties and data sheet
| Density | 1.13 g/cm³ |
|---|---|
| Tensile strength | 10,000 psi |
| Compressive strength at 10% deflection | 14,000–15,000 psi |
| Flexural strength | 13,000 psi |
| Elongation | 20 % |
| Hardness | 79–81 Shore D |
| Coefficient of friction (dry against steel) | 0.14 dimensionless |
| Water absorption, 24 hours | 0.5 % |
Typical values, not finished-part performance guarantees. Compressive strength is at 10% deflection; dry-friction values refer to steel where stated. Nylatech PVM technical data.
PVM in other shapes: Sheet · Tube (browse OD ranges).
Custom sizes and CNC-machined parts
For custom rod lengths or CNC-machined parts, send grade, diameter, each finished length and piece count. Include a drawing and required tolerances for machined parts. Request custom work.
