Nylatech® Cast Nylon Rod
Nylatech® cast nylon 6 rod provides solid round PA6 stock for machined rollers, shafts and wear components. Choose a grade, then a diameter from 3" to 14".
1. Choose stock shape → 2. Choose grade → 3. Select size
Choose your grade
-
Custom Order

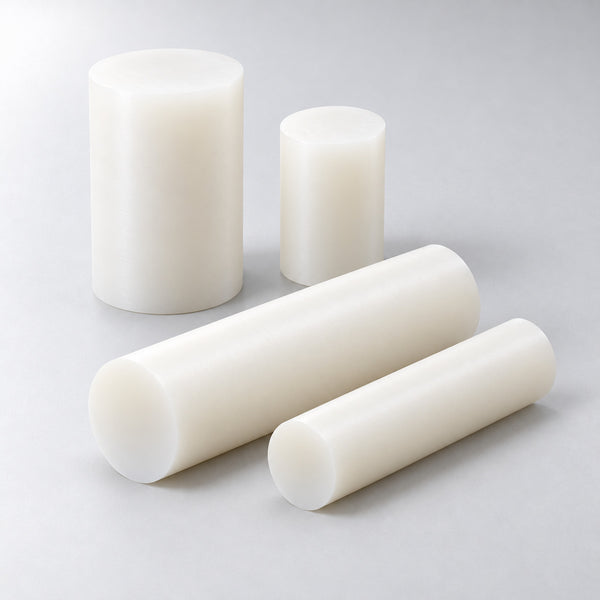

Nylatech® Natural
Select diameter, then specify piece lengths and counts. Sold per LFT.
From $99.56 LFT /View options -
Custom Order

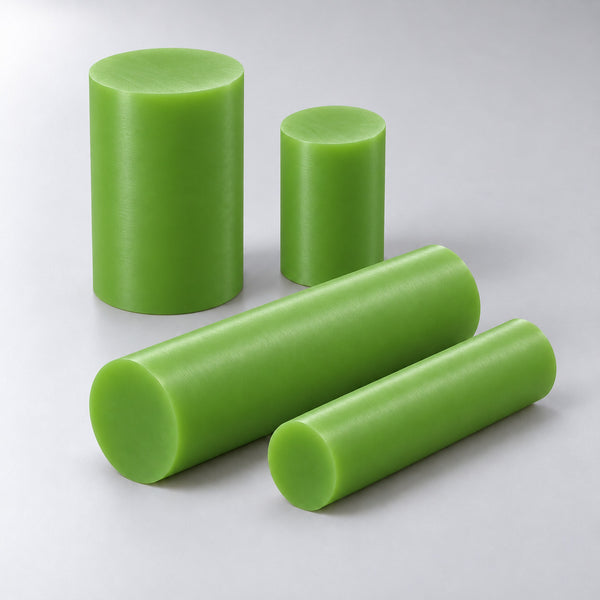

Nylatech® Oil-Filled
Select diameter, then specify piece lengths and counts. Sold per LFT.
From $114.50 LFT /View options -
Custom Order

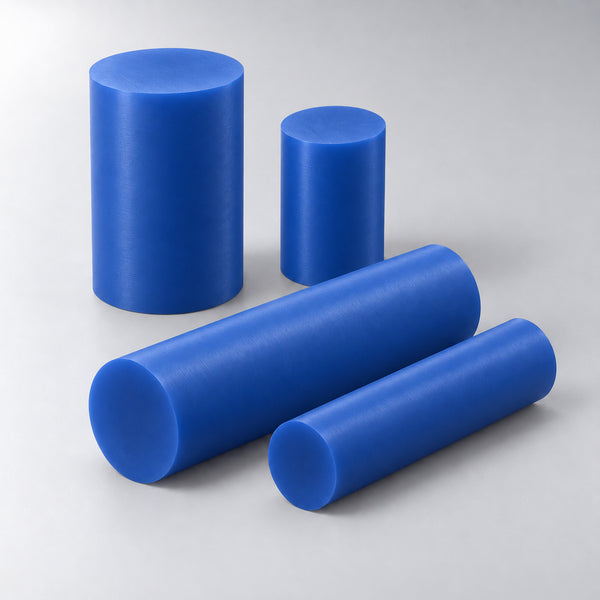

Nylatech® Blue
Select diameter, then specify piece lengths and counts. Sold per LFT.
From $99.56 LFT /View options -
Custom Order
Nylatech® MD
Select diameter, then specify piece lengths and counts. Sold per LFT.
From $99.56 LFT /View options -
Custom Order

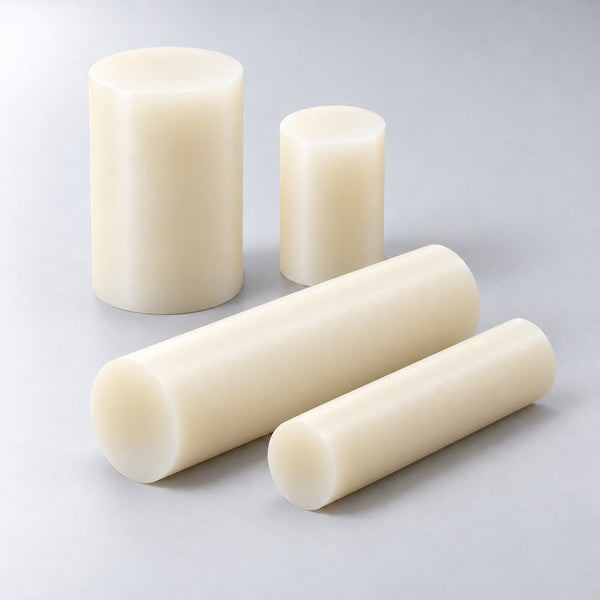

Nylatech® Natural-Oil
Select diameter, then specify piece lengths and counts. Sold per LFT.
From $114.50 LFT /View options -
Custom Order

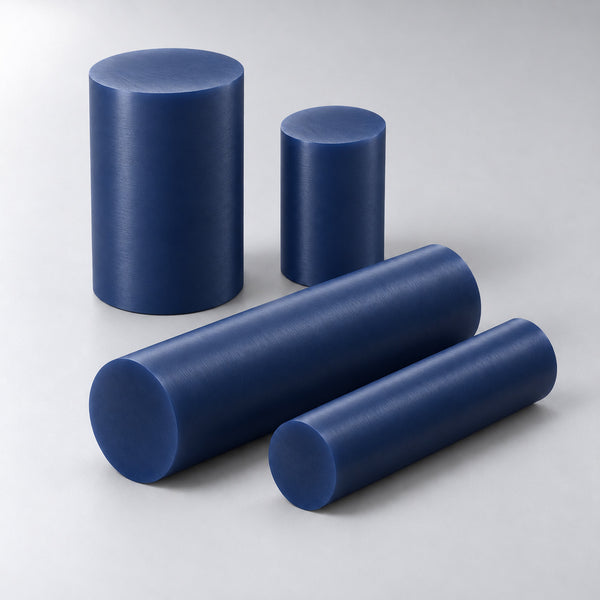

Nylatech® MD-Oil
Select diameter, then specify piece lengths and counts. Sold per LFT.
From $124.45 LFT /View options -
Custom Order

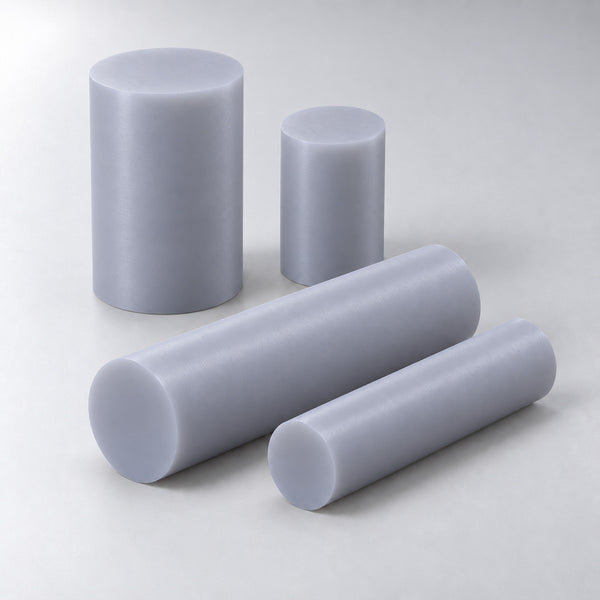

Nylatech® SL
Select diameter, then specify piece lengths and counts. Sold per LFT.
From $134.41 LFT /View options -
Custom Order

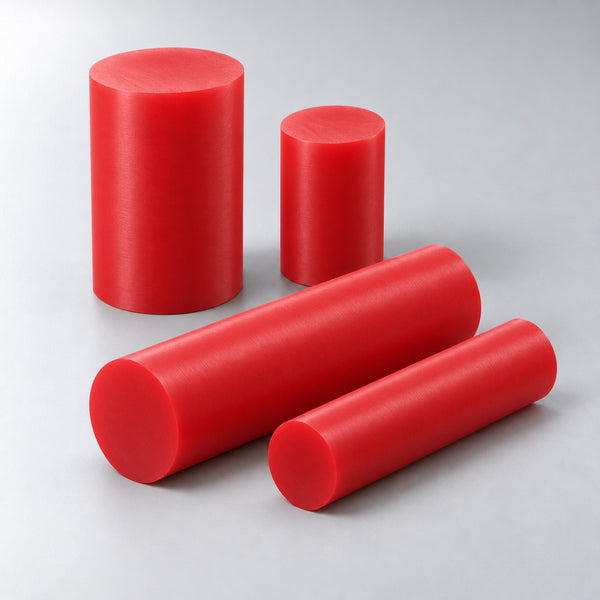

Nylatech® PVM
Select diameter, then specify piece lengths and counts. Sold per LFT.
From $134.41 LFT /View options -
Custom Order
Nylatech® Super Black
Select diameter, then specify piece lengths and counts. Sold per LFT.
From $114.50 LFT /View options -
Custom Order
Nylatech® Food Grade Blue
Select diameter, then specify piece lengths and counts. Sold per LFT.
From $114.50 LFT /View options
Grade comparison and ordering guidance
Nylatech® cast nylon 6 rod provides solid round PA6 stock for machined rollers, shafts and wear components. Choose a grade, then a diameter from 3" to 14".
Compare Nylatech® grades · Sheet · Tube
How to order rod
Sold per linear foot (LFT): quantity 1 = 1'. The displayed price is per foot, not per four-foot bar.
- Select the grade below, then the diameter.
- Specify the length and count of each required piece.
- Confirm total footage and the cutting arrangement before ordering. Four feet of material could mean one long piece or several shorter pieces.
Choose a grade
Nylatech® Natural — Unfilled cast PA6 for general-purpose machined wear parts.
Nylatech® Oil-Filled — Internally oil-lubricated nylon for sliding and rotating wear parts where lubrication access is difficult.
Nylatech® Blue — Heat-stabilized nylon. Assess operating temperature together with load and duty cycle.
Nylatech® MD — Molybdenum-disulfide-modified nylon for wear-duty components.
Nylatech® Natural-Oil — Oil-lubricated nylon for applications requiring food-contact documentation.
Nylatech® MD-Oil — Moly modification plus oil lubrication for loaded parts with slow relative motion.
Nylatech® SL — Solid-lubricant-modified nylon for sliding wear surfaces.
Nylatech® PVM — A candidate when bearing pressure and sliding speed are central to material selection.
Nylatech® Super Black — Black, heat- and UV-stabilized nylon with heat-stabilized Nylatech® Blue properties.
Nylatech® Food Grade Blue — Food-grade Nylatech® Natural properties in blue, for visual identification. Colour does not make it metal- or X-ray-detectable.
Check the operating conditions
Nylon absorbs moisture, which can change dimensions and stiffness. Review fit, temperature, load, speed and lubrication before specifying a grade. Where moisture stability is critical, compare acetal (POM-C). Consider UHMW for alternative wear-stock applications. Use the grade data sheet and finished-part requirements together.
Custom lengths and CNC parts
Contact our team for custom rod lengths or CNC-finished components. Supply a drawing or finished dimensions, quantity and service conditions.
For food-contact applications, confirm the exact grade documentation and intended service conditions before specifying Nylatech® Natural, Nylatech® Natural-Oil or Nylatech® Food Grade Blue.
Custom orders and delivery
Nylatech® cast nylon is manufactured on request when your selected size is not in stock. Standard lead time: 3–5 weeks. Request a Price and Delivery for the selected variant; our team confirms the timing and delivery arrangements for your order.
Include your destination postal code and cutting requirements. Large or heavy stock may require a freight quotation; the delivery method and cost are confirmed for the material, dimensions and destination. Pickup arrangements are confirmed with the fulfilling corporate branch.
