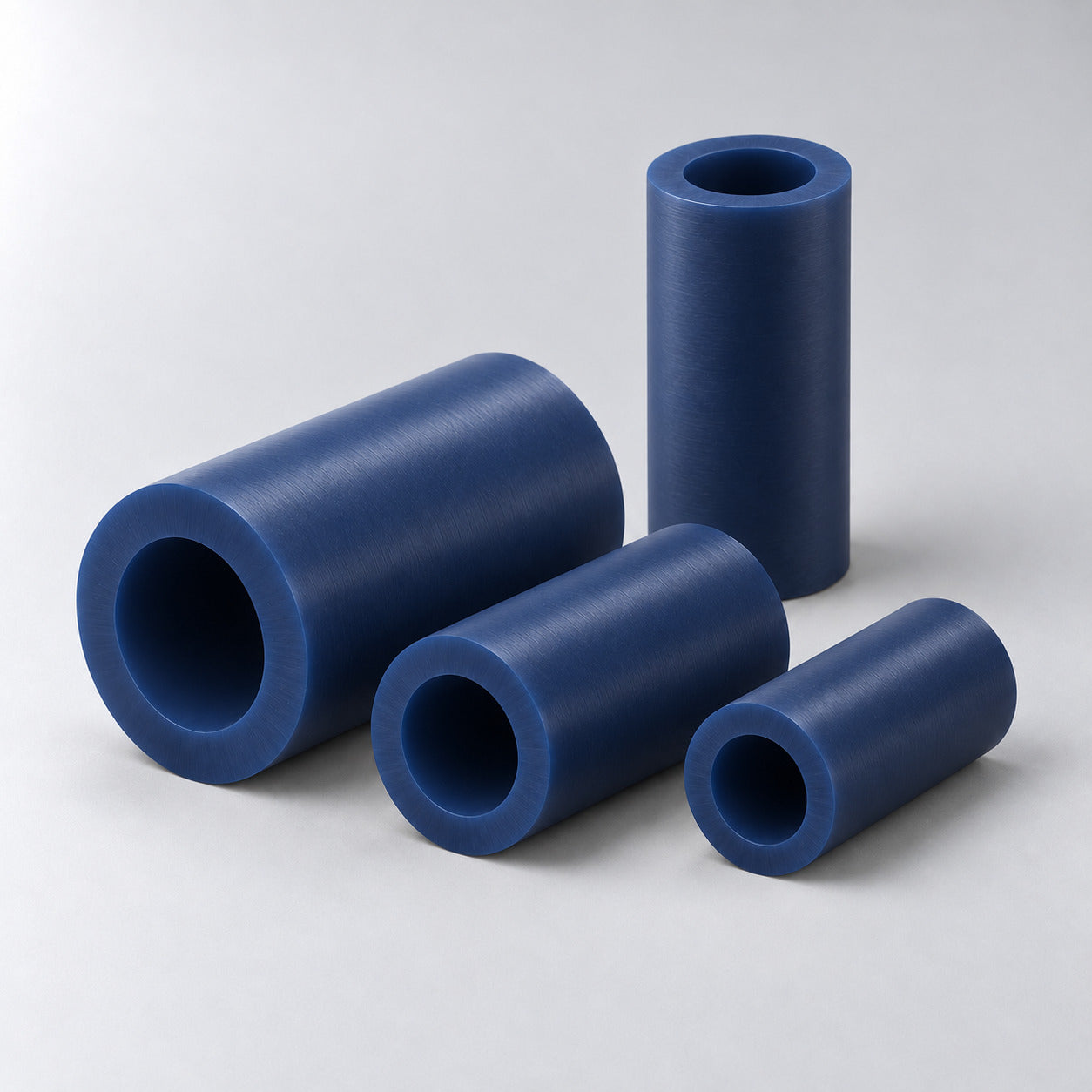

14.5–18 in outside diameter (OD). Select OD, then inside diameter (ID).
Sold each (EA): quantity 1 = one complete tube. Standard length is 26 or 52 in, fixed by the OD/ID combination; confirm the selected length. Length is not a separate option.
Choosing MD-Oil
Consider MD-Oil for loaded parts with slow movement and difficult lubrication access. Compare MD without oil lubrication or Oil-Filled without moly modification.
Tube is machining stock for bushings, sleeves and rings, not finished bearings or pressure-rated pipe. Nominal wall thickness = (OD − ID) ÷ 2.
Allow for machining: dimensions are nominal stock sizes, not finished-part tolerances. Nylon absorbs moisture; consider dimensional change, temperature, chemicals and operating loads when specifying close-fitting parts.
Technical properties and data sheet
Nylatech MD-Oil — typical selection data
Density
1.15 g/cm³
Tensile strength
10,000–12,000 psi
Compressive strength at 10% deflection
14,500 psi
Flexural strength
15,000 psi
Elongation
30–45 %
Hardness
80–84 Shore D
Coefficient of friction (dry against steel)
0.13–0.20 dimensionless
Water absorption, 24 hours
0.2–0.5 %
Typical values, not finished-part performance guarantees. Compressive strength is at 10% deflection; dry-friction values refer to steel where stated. Nylatech MD-Oil technical data.
For custom tube sizes or lengths, or CNC-machined parts, send grade, OD, ID, length and piece count. Include a drawing and required tolerances for machined parts. Request custom work.
Pickup currently unavailable at Kelowna, BC

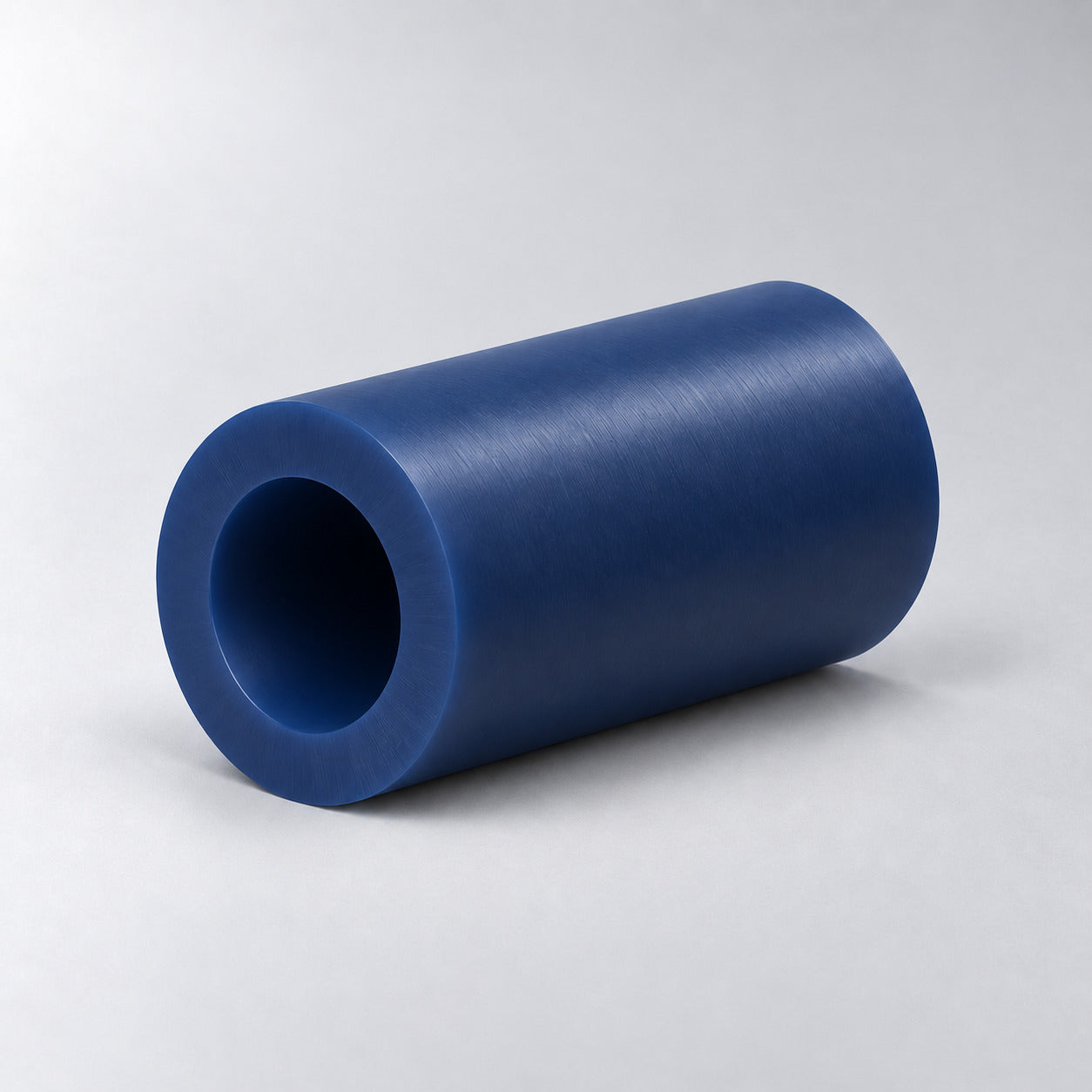

Nylatech MD-Oil Cast Nylon 6 Tube — 14.5–18 in OD
SKU: NMOT-14.5-4
It appears you are visiting from a region serviced locally by our Nanaimo Franchise.
14.5–18 in outside diameter (OD). Select OD, then inside diameter (ID).
Sold each (EA): quantity 1 = one complete tube. Standard length is 26 or 52 in, fixed by the OD/ID combination; confirm the selected length. Length is not a separate option.
Choosing MD-Oil
Consider MD-Oil for loaded parts with slow movement and difficult lubrication access. Compare MD without oil lubrication or Oil-Filled without moly modification.

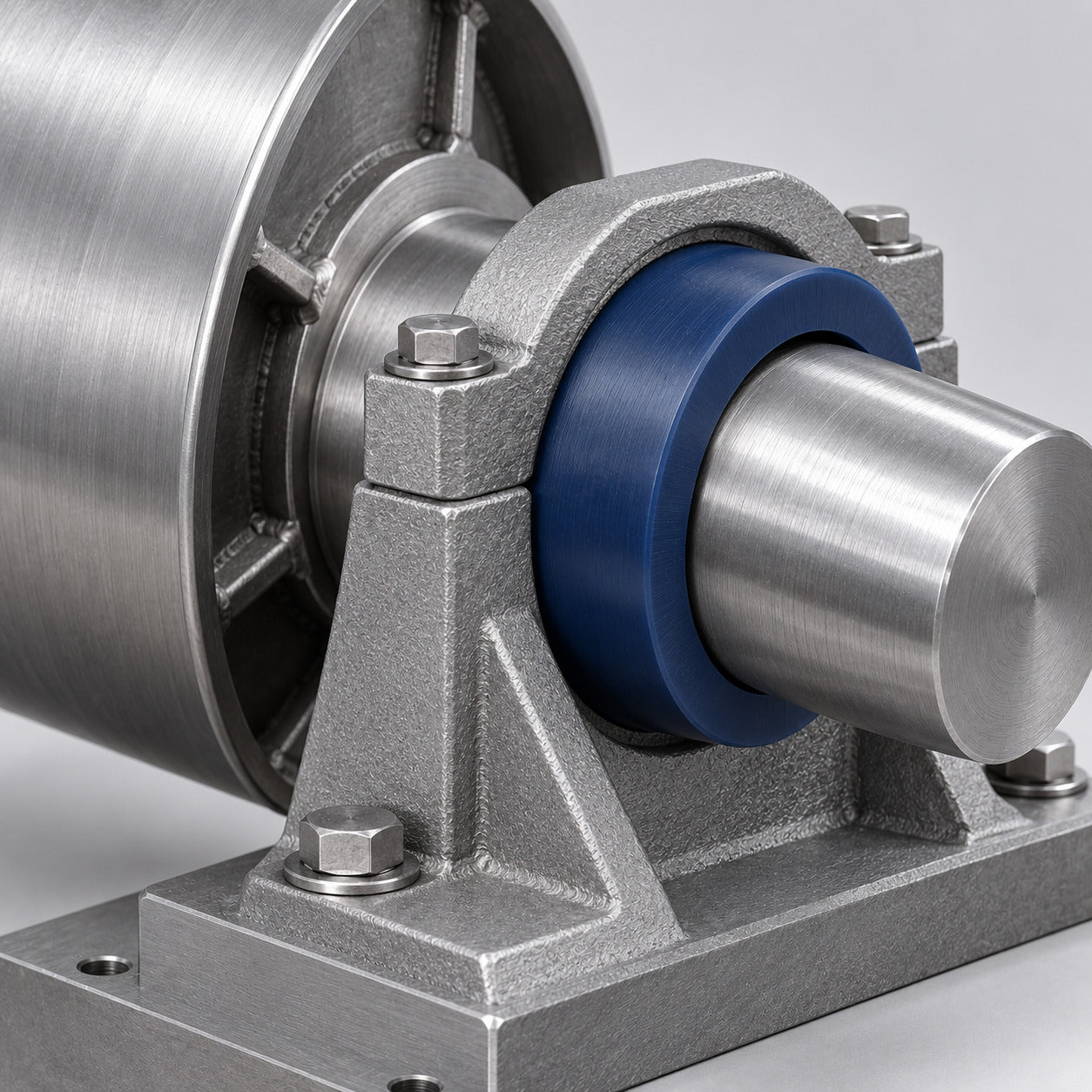

Tube is machining stock for bushings, sleeves and rings, not finished bearings or pressure-rated pipe. Nominal wall thickness = (OD − ID) ÷ 2.
